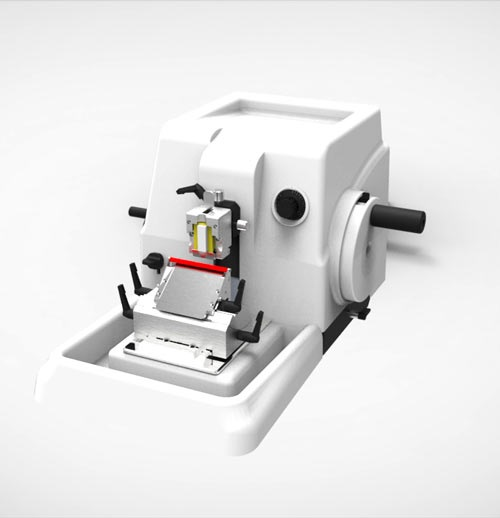

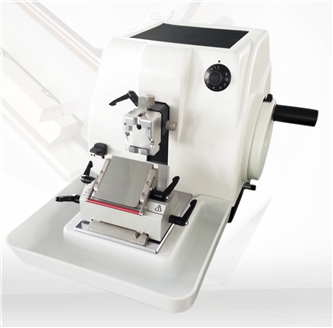

• ● Spacious magnetized section waste tray
  ● Ergo-handwheel handle
  ● Convenient storage area on top of instrument
  ● Disposable blade holder with integrated safety finger protection guard
  ● Two handwheel locks : handwheel can be locked at any position
  ● Distortion-resistant base plate ensures optimum overall stability
  ● Both low & high profile disposable blade are usable

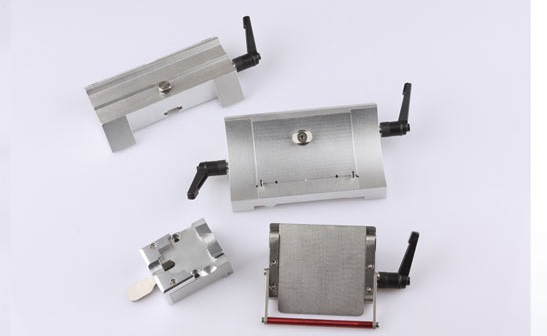

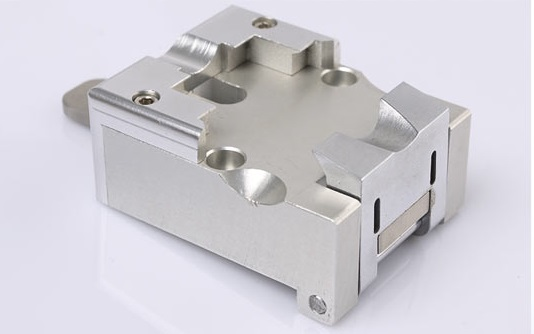

  ●Two types of specimen clamp : standard specimen clamp and “C” type specimen clamp
  ● Retraction function : 220μm , could be turned on/off
  ● Extremely smooth running force compensation system





• ● Section thickness setting : 0μm～60μm adjustable
                                           0μm～2μm, in 0.5μm increments;
                                          2μm～10μm, in 1μm increments;
                                          10μm～20μm, in 2μm increments;
                                          20μm～60μm, in 5μm increments;
  ● Trimming thickness: 10~50μm adjustable
  ● Retraction range: 150 μm , could be turned off
  ● Maximum specimen size：50×60 x 40 mm or standard cassette
  ● Specimen vertical stroke：70 mm
  ● Specimen horizontal stroke：28 mm
  ● Specimen holder adjusted system : Horizontal orientation: ±8° Vertical orientation : ±8°
  ● Blades holder base repositioning ( left-right) : 50mm
  ● Advanced feed by rotating left handwheel a circle around : 0.35mm
  ● Dimensions : Width : 460 mm (310mm without handwheel) Depth : 575 mm Height : 325 mm
