Features & Benefits

• Collects hundreds to thousands of sections on a continuous tape
• Non-destructive to sample, with sections available for years into the future for processing, post-staining, immunogold labeling, correlative imaging — and at any work pace desired.
• Section thickness usually range from 30nm to 5,000nm, with thinner sections possible.
• Determines sample viability sooner in the process so you don’t waste valuable time cutting and imaging a problem sample.
• Uses multiple resolutions for locating regions of interest, then zooming in for higher resolution imaging
• Allows correlative microscopy for localization and then ultra-structural imaging
• Prepares samples that allow short pixel dwell time for fast detection of images during electron microscopy
• Uses standard sample preparation techniques and resins
• Charging effect on sections is manageable
• Priced at a fraction of the cost of alternative 3-D imaging techniques

Supplied Complete with:

• ATUM continuous tape feed mechanism with PC control software

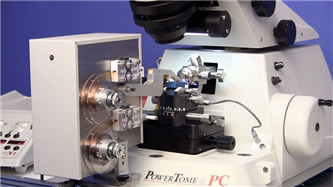

• PowerTome PT-PCZ
• Air-activated anti-vibration microtomy table including ATUM attachment interface with x-y-z fine control positioning of tape/section pick-up head
• Silent compressor
• Environmental chamber
• Anti-static device
• Ergonomic lab chair
• 4 mm diamond knife, 35 degrees for room temperature ultra-thin sectioning, mounted in large-cavity blue anodized holder
• Water level control system
• Wafer workstation
• Start-up supply of Kapton tape
• Four 4” diameter silicon wafers

Dimensions:  49” W x 36” D x 54” H
Weight:  796 lbs. ( 361 kg)
Electrical:  input: 110 – 240 VAC 50/60 Hz;  output: 255 watts
