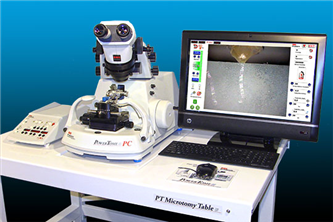

A PC controlled ultramicrotome supplied complete with all-in-one slim design computer, with integrated “Touch Screen” control monitor, wireless mouse & keyboard, interconnect cables & accessories. All control functions are activated by touching the control monitor screen, or by mouse, or by using the digital controller. Color monitor displays bright, user friendly, control icons logically & clearly located around central video image display panel.

Featuring:

• Power Tome, high stability, zero back-lash, cutting arm drive system
• High precision, manually operated, knife stage
• Ergonomic photo stereomicroscope system with constant radial focus, eucentric tilt control adjustment & unique “Scan and Tilt” control.
• Numeric & digital displays of number of sections cut, total specimen feed advanced, section thickness, cutting speed and specimen feed remaining
• Built-in hand rests for maximum comfort when specimen trimming and collecting sections
• Bright LED approach backlight with independent LED specimen transillumination/spotlight for specimen localization
• Cutting zone set by unique Visutrac™ control that can be adjusted at any time. Cutting zone can also be set by positioning specimen & touching upper & lower cutting zone icons on the touchscreen or the control buttons on the tactile controller.
• Electronic stepping control for automatic specimen advance/return
• Built-in report generator & data base with specimen parameter recall mode.
• Five memory channels to store frequently used cutting and trimming parameters
• Built-in diagnostic & set-up routines
• Help menu
• HD video package with photo stereozoom microscope, c-mount & camera factory installed
• Skype internet software factory installed with tech support contacts included
• PT-PC Ultramicrotome supplied complete with the following:
  All-in-one without video, slim design, compact computer system, with the following, or similar specifications:
  2.4 GHz 64 bit dual core processor
  20” touchscreen HD LCD display
  4GB RAM
  6 USB ports
  Slim tray optical DVD burner
  500GB hard drive
  Wireless keyboard & mouse
  Windows 7 Home Premium operating system
• Separate tactile control unit with digital displays of cutting speed, section thickness, number of sections cut & specimen advance
• Specimen orientation mount (formerly arc segment mount)
• Stemi 2000 stereomicroscope with 7.7:1 zoom range, 6.5X to 50X magnification with 10X wide field (23mm) eyepieces
• Self-locking Positrac™ lower knife stage
• Upper knife stage with 360° rotation and knife clearance angle adjustment from -2° to 15°.
  Accepts glass knives up to 12mm wide, triangular tungsten carbide knives and any commercial brand of diamond knife
• One universal transilluminating specimen holder with wrench
• One 7mm flat specimen block transilluminating holder LED back-lighting and specimen transillumination/spotlight with brightness controls
• Bright overhead diffused light
• Glass knife support
• Wooden accessory box
• Trimming block and post
• Microscope mounted breath shield
• Knife stage mounted air draft shield
• Dual foot switch control for switching from trim to cut or semi-thin to ultra-thin sectioning
• Power cord
• Interconnect cables
• Wrenches
• Dust cover
• Spare lamps and fuses
• Instruction manual                                                                                                                                             Specifications:
  Auto thin sectioning from 1nm
  Auto thick sectioning to 15µm
  Cutting speed range from 0.1 – 100mm/sec
  Specimen auto feed 200µm
  Variable return speed over entire cutting speed range
  High precision manually operated knife stage with 30mm lateral and 12mm forward motion
  100/120/220/240 VAC 50/60Hz power input
  Shipping dimensions: One pallet base, tri-wall crate,
  840x560x635mm, and one accessory carton 610 x 610 x 610mm
  Net weight: 33kg Gross weight: 74kg
